GB7FT

This is a webpage of the GB7FT,

DMR BRANDMEISTER repeater

in Portsmouth, Fratton, UK

Keeper: Pawel Rozenek, M0PPR

  • Repeater output: 439.7125 MHz (you need to listen here)
  • Repeater input: 430.7125 MHz (you need to transmit here)
  • TX: Motorola GM360, power 5W, ERP: 10.5dBW
  • RX: Motorola GM360
  • Colour code 3
  • Antenna Diamond X510N 11.7dBi (9.55dBd), 8m above ground level, 15m above the sea level
  • Raspberry Pi 3 B+
  • MMDVM from BI7JTA

Location: Fratton, Portsmouth, UK, IO90LT

ETCC Region: South-West
RSGB Region 10

Current slot settings (likely will change):

SLOT 1SLOT 2
TG235 (UK) TG2350 (UK)
Static Talkgroups @ GB7FT

Please use TalkGroups 2351, 2352, 2353 on slot 2, all other groups on slot 1

JUST SIMPLY ASK IF YOU WANT ME TO ADD ANY TG

Unfortunately the antenna is situated just at the top of my house’s roof so it does not provide a great coverage. But it is still better than nothing! And the repeater provides a very good coverage inside of Portsmouth, when I walk with my handheld radio.

Repeater restarts automatically every night 03:00 AM … 03:01AM

Link to repeater’s Pi-Star page: http://gb7ft.rozenek.com:666

Link to Facebook Group: https://www.facebook.com/groups/gb7ft/

QRZ: https://www.qrz.com/db/GB7FT

RSGB: https://ukrepeater.net/my_repeater.php?id=4631

Brandmeister: https://brandmeister.network/?page=device&id=234027

Predicted coverage – see the map below:

Still not in the enclosure, but it will be done soon
Repeater GB7FT Assembled
Repeater GB7FT with added extra filter to improve RX sensitivity. Also VHF/UHF diplexer added so now the GB7FT shares its antenna with VHF Motorola i-Gate APRS receiver.
DMR Repeater GB7FT during the assembly

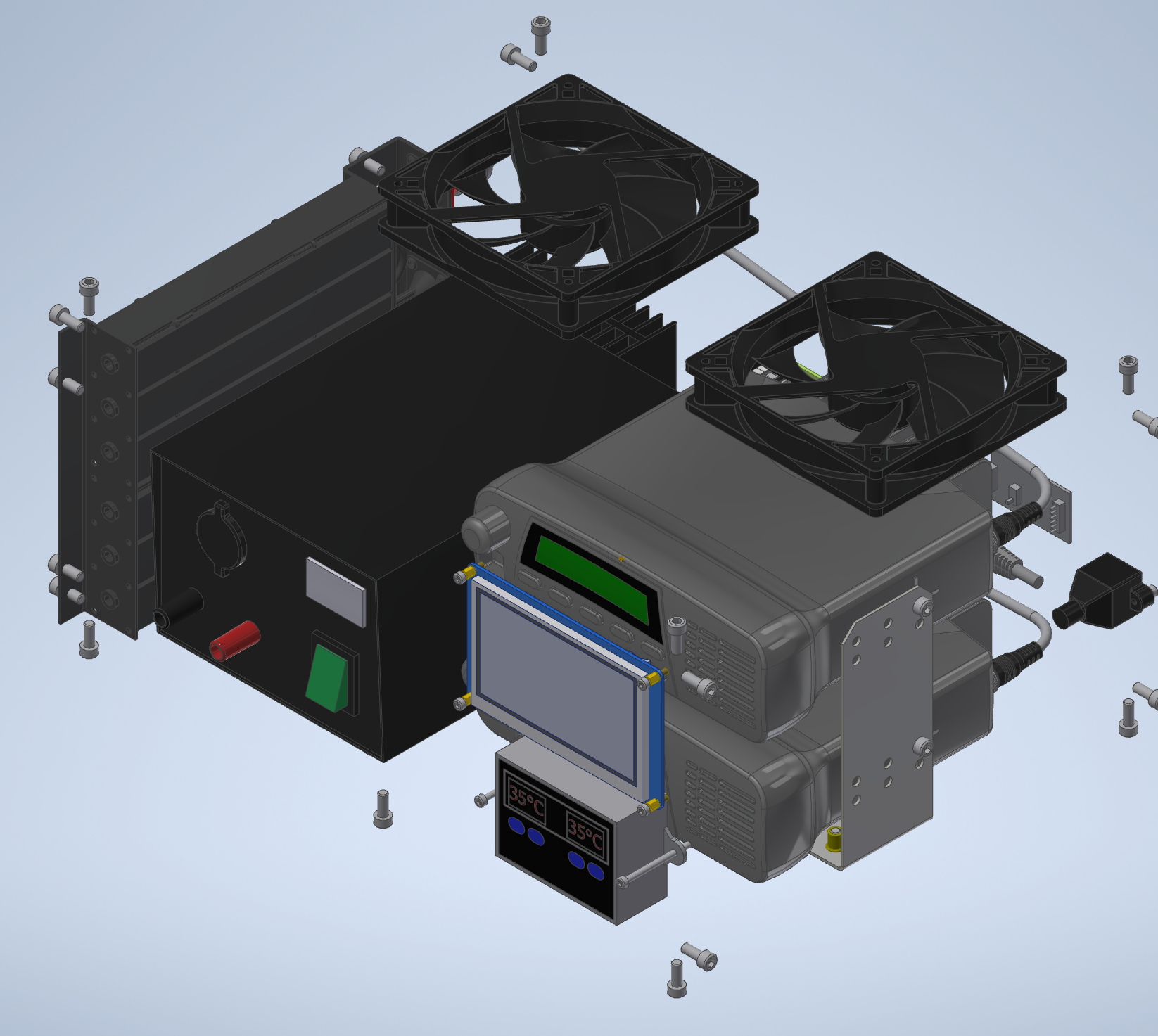

3D model of the repeater at the beginning of the design stage

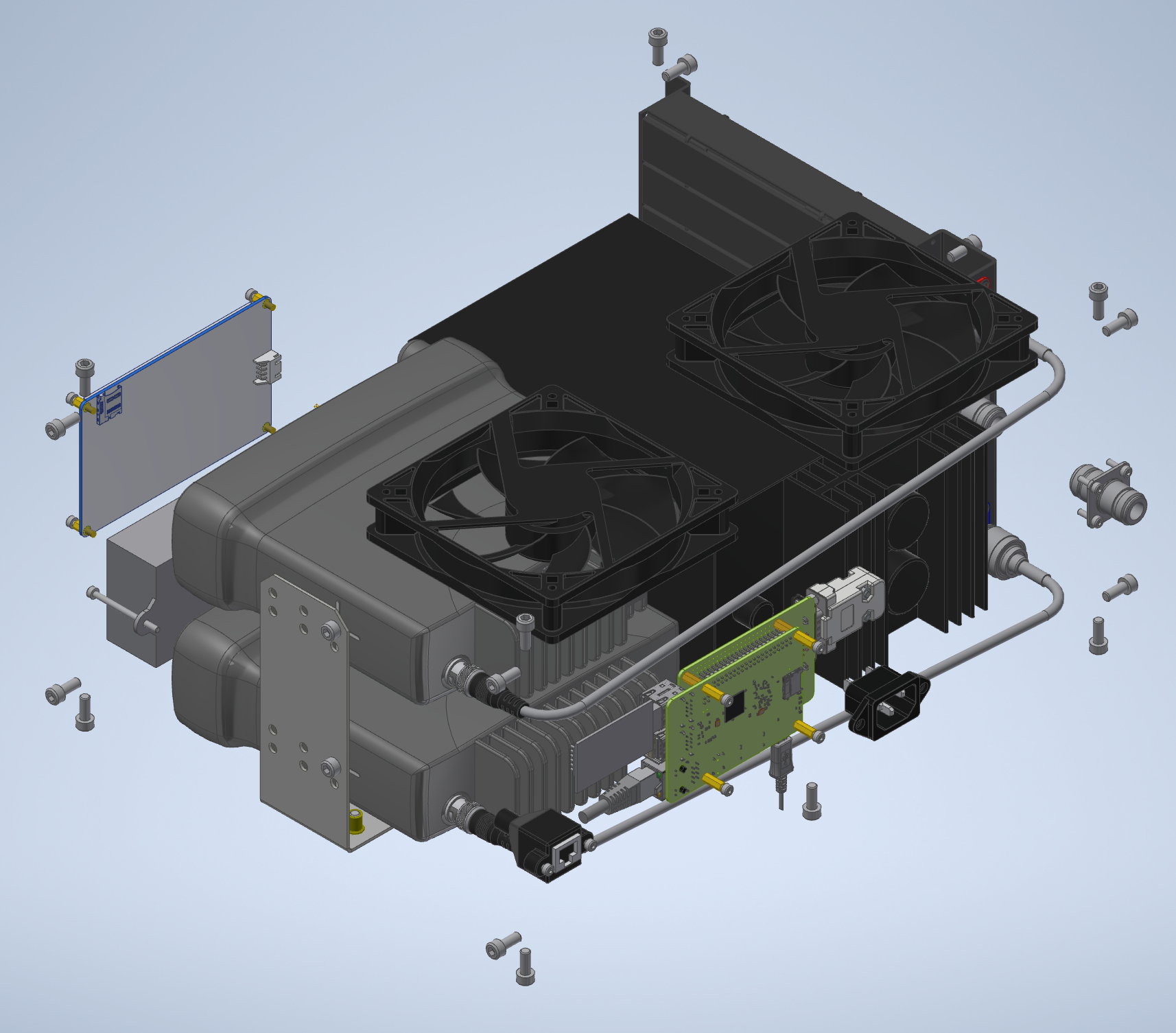

3D model of the repeater at the beginning of the design stage

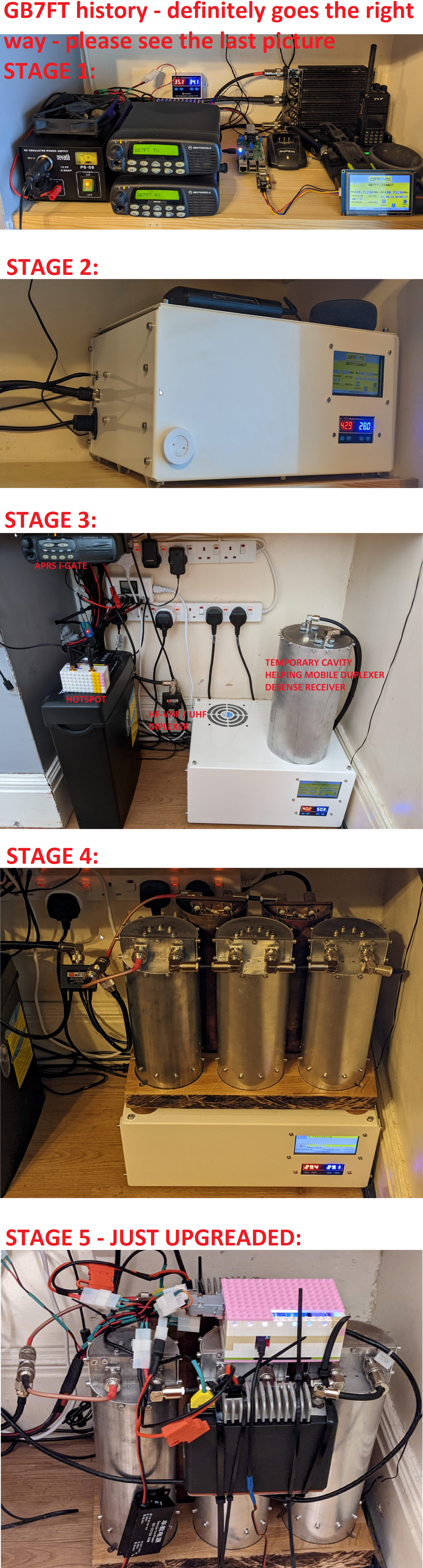

…and the latest stage 6 🙂 :
